1. PRODUCT STRUCTURE&PERFORMANCE DESCRIPTION
2. INSTALLATION DISTRIBUTION DIAGRAM OF CARBON CRYSTAL PLATE
Installation method, process, and precautions for carbon crystal board/wood veneer board:
(1) First, investigate whether the wall is flat. If the wall is flat, there is no need to install carbon crystal board/wood veneer board as a base, If the wall is uneven, it must be leveled with plywood/gypsum board/cement board before installation and bonding.
(2) Measure the width of the entire wall to determine the cutting width of each decorative panel during actual installation. Pay attention to the horizontal position of the doors and windows, and ensure proper distribution. Generally, wider walls are paved directly with 1220 large boards. For narrower walls, calculate the actual size, evenly cut the width of the decorative panels, and then fit them together.
(3) During actual installation. install the top corer line first, and then install the bottom comer line. Facing the wall start fitting from left to right. Firstly, use a point like (or S-shaped) structural adhesive and apply it evenly to the wall surface (or back of the decorative panel). Then, insert the decorative panel diagonally into the top comer line, adjust the horizontal position, and then insert the decorative panel from right to left into the left corner line.
(4) Slowly flatten the four edges and middle position of the decorative panel with a rubber hammer, and insert a metal i-shaped strip on the right side of the decorative panel, paying attention to the appropriate tightness. Fix the -shaped strip with a gun nail. This cycle of installation is sufficient.
(5) Pay attention to the application scenarios of various metal lines. When measuring with a ruler, carefully survey and make statistics, When stocking, prepare sufficient quantity based on the number of decorative panels and room structure, measure the metal lines to avoid errors and delays in installation.

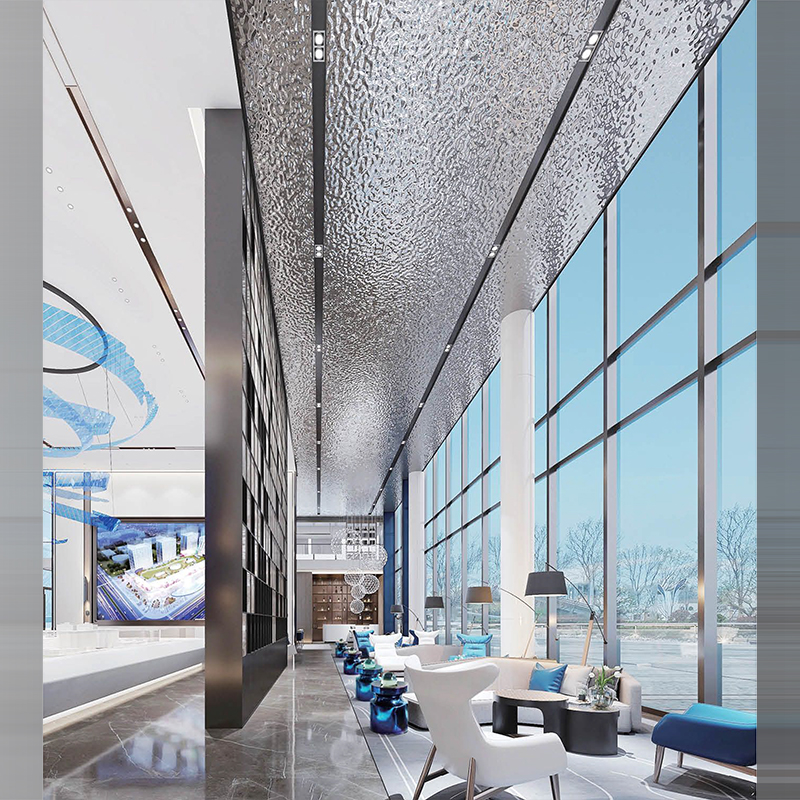

3. Carbon crystal board is one of the most popular wall decoration materials at present, widely used in various commercial spaces, hotels apartments, schools, hospitals, residences, and other engineering decoration fields. Due to factors such as lighting and printing, all product color and texture effects should be based on the actual product.
it has the following product characteristics
(1).Excellent product stability. The substrate of our carbon crystal board is a three-layer structure, with a crystal ceramic layer on the surface and bottom layer, and a bamboo carbon fiber layer in the middle core layer. The product with a three-layer structure has excellent stability and excellent deformation resistance.
(2). Ultra high environmental performance. Our company uses environmentally friendly calcium zinc stabilizers throughout the production of carbon crystal plates, abandoning traditional lead sat stabilizers; The adhesive adopts imported PUR adhesive. Green and environmentally friendly. Double caring!
(3). The diversity of surface decoration materials. Our company has established a long-term and lasting cooperative relationship with excellent domestic wall fabric manufacturers, using traditional PVC film, PP film, PET film, leather, metal film, water-based cross fabric base film, and soon. In terms of visual presentation, it can be both plain and luxurious
(4). The diversity of processing and installation processes, Our company's carbon crystal board production has its own large-scale extruder. which is seamless from extrusion to flat pasting. We can also provide processing for the rear section, with large engraving machines and heavy-duty slotting machines, which can carve any size at will. We can also create double female grooves, male female grooves (flat buckles). male female grooves (lock buckles), natural U-seams, and other buckle types for carbon crystal plates. This greatly reduces the difficulty of instating the port and improves the effect presented during delivery.
